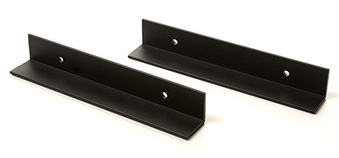

L Shaped 90° Angle Profiles Profiles
Contact our Plastic Extrusions Sales department for further selections or for a quotation on a specific design:
Michael Casey Jr. - 508-583-8200 Ext. 3094 - [email protected]
Barbour Plastics Rigid Vinyl is a premium grade, thermoplastic material that exhibits excellent impact strength, UV resistance and is virtually maintenance free. It can be cut or drilled using most common woodworking tools.
Great for various applications:
- Protective corner guards
- Hold down brackets
- Guide tracks
- Wall joiners
- Edge trim
Thermoplastic PVC Physical Properties
Typical Properties
Nominal Value
ASTM Test Method
Specific Gravity
1.40
D-792
Hardness - Shore D +/- 5
80
D-2240
1/8* Notched Izod Impact Strength, ft/lbs/in
25
D-256
Tensile Yield Strength, psi
6000
D-638
Coefficient of Thermal Expansion, in/in °F
3.6 x 10-5
D-696
UL - Flame Rating
V-0
UL-94
- Durable
- UV Resistant
- Chemical Resistant
- NSF 51 Listed
P/N
A (Leg)
B (Leg)
C (Wall)
Length
Weight Lbs/Foot
Quantity Per Box

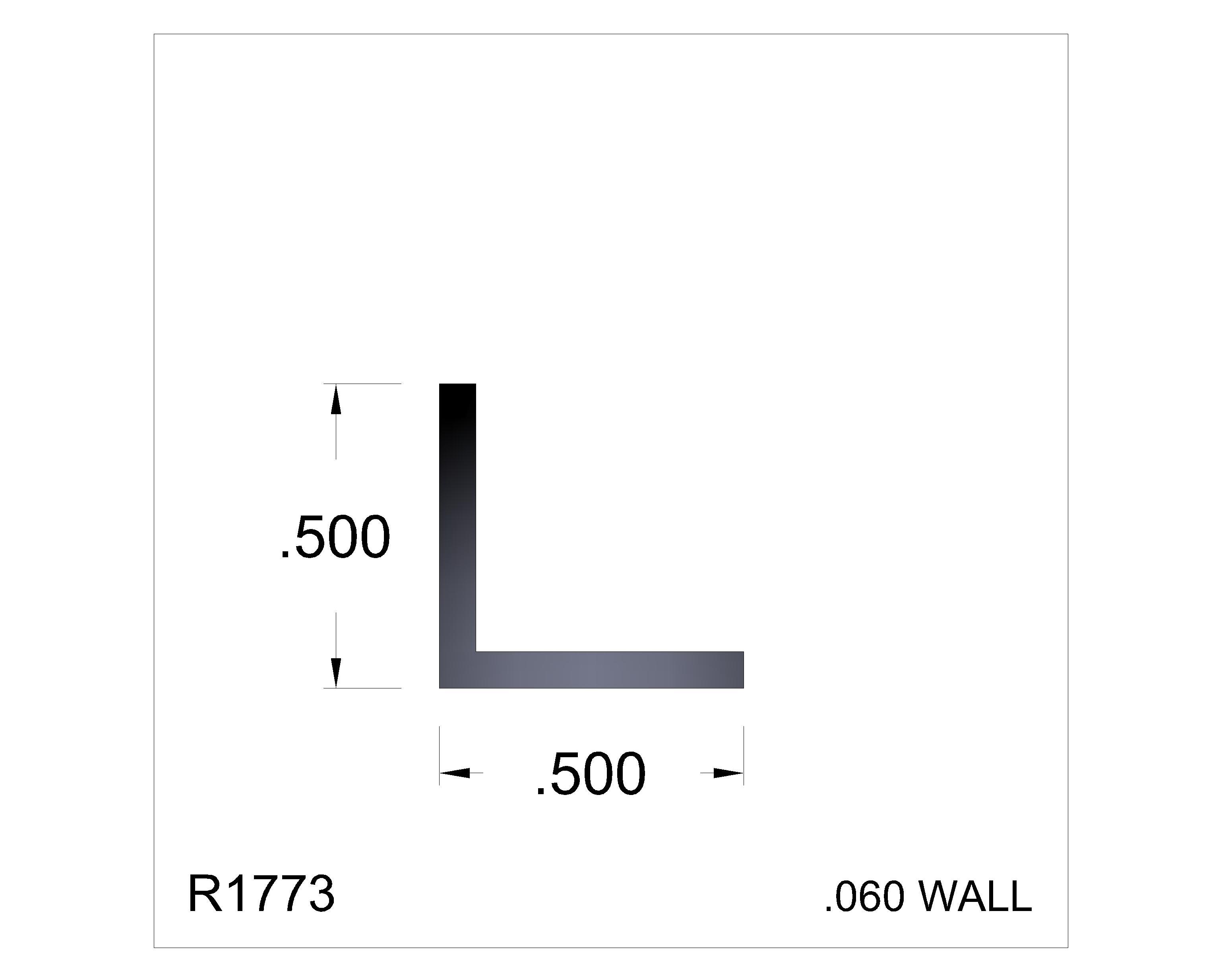

R1773
1/2*
1/2*
0.060
96.00*
0.034
25

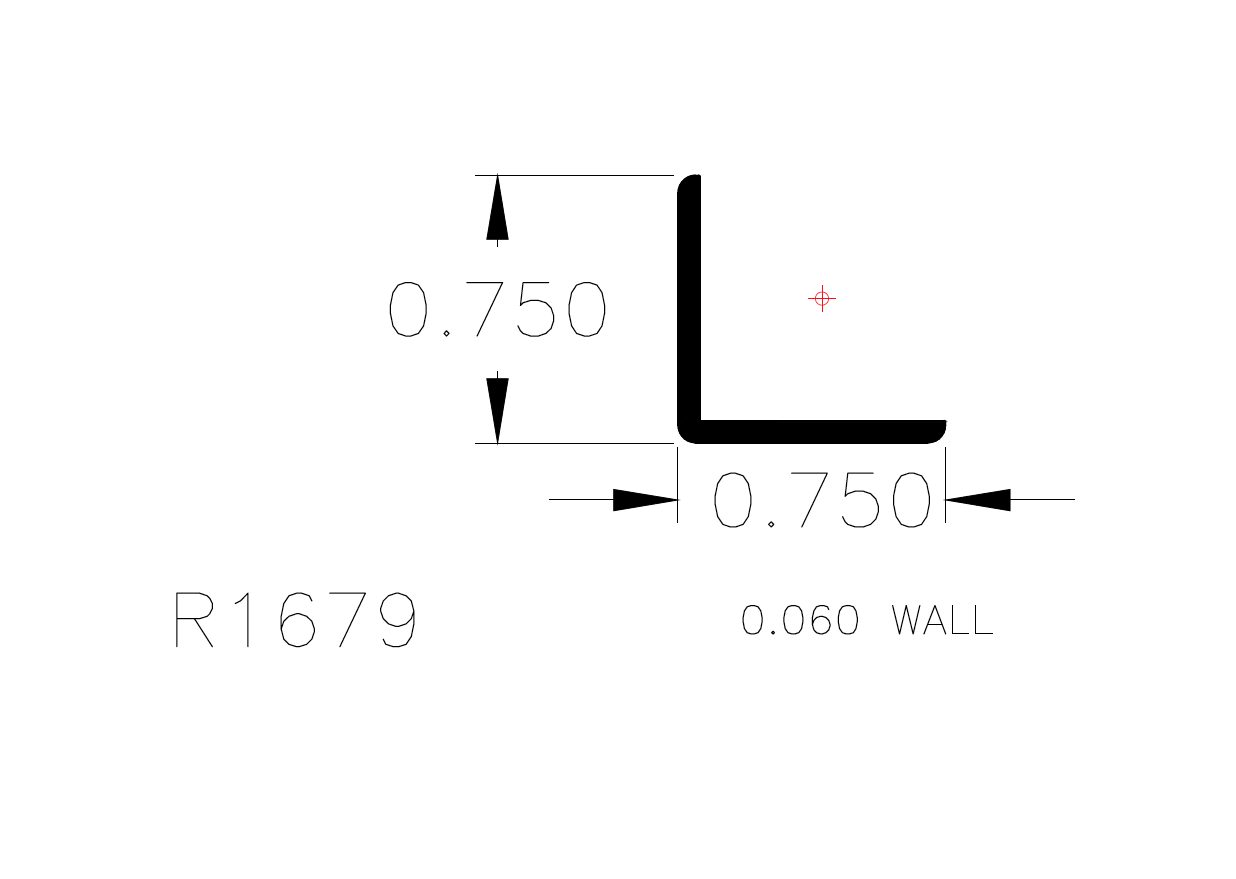

R1679
3/4*
3/4*
0.060
96.00*
0.052
25

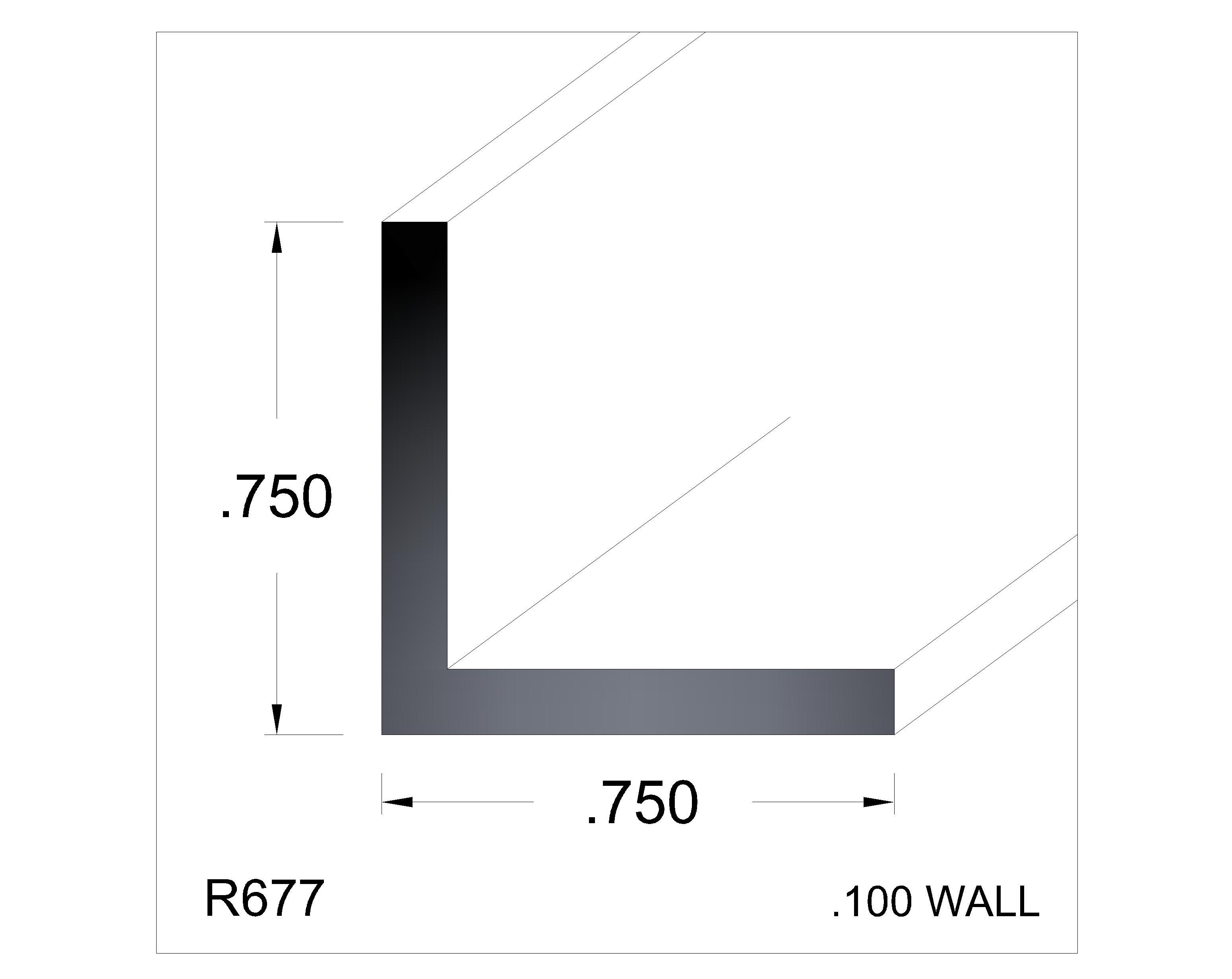

R677
3/4*
3/4*
0.100
96.00*
0.085
20

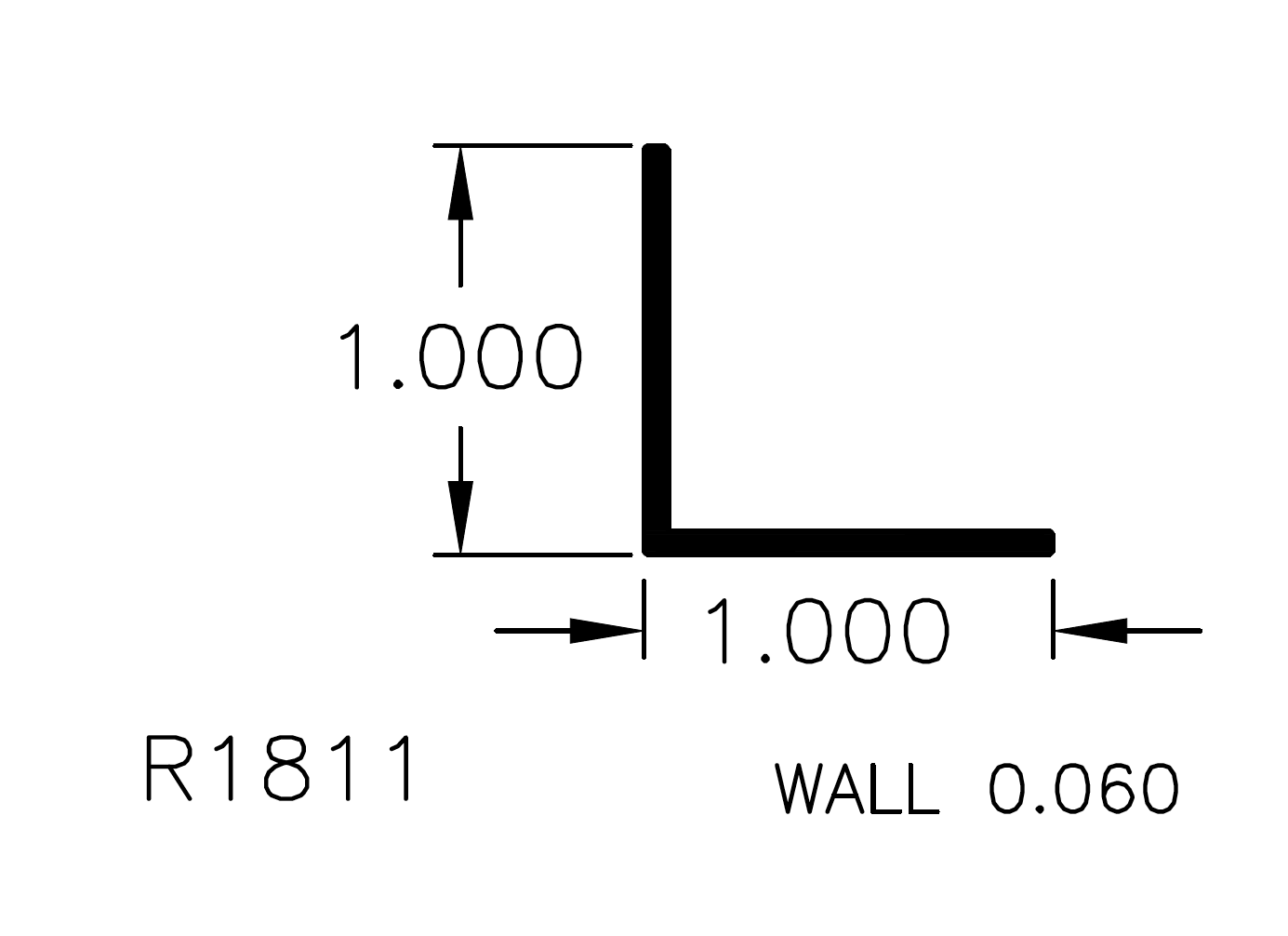

R1811
1.0*
1.0*
0.060
96.00*
0.071
20

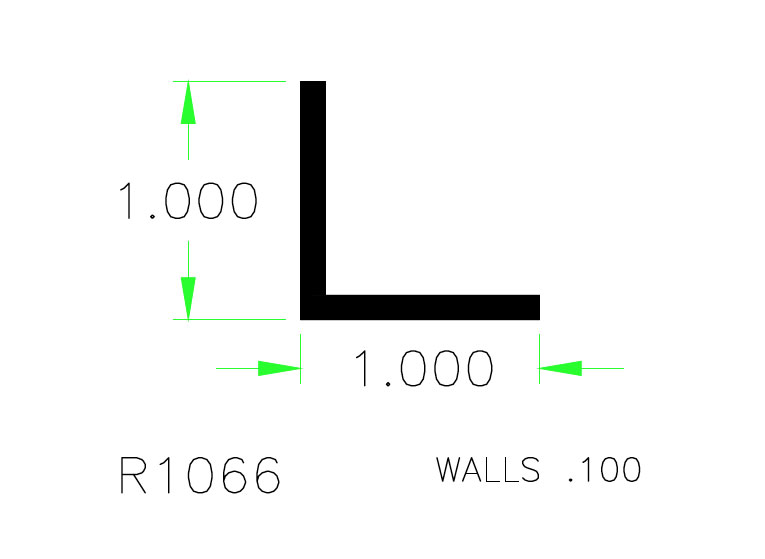

R1066
1.0"
1.0"
0.100
96.00"
0.115
20
R1852
1.5"
1.5"
0.065
96.00"
0.116
12
R1025
1.5"
1.5"
0.188
96.00"
0.321
12

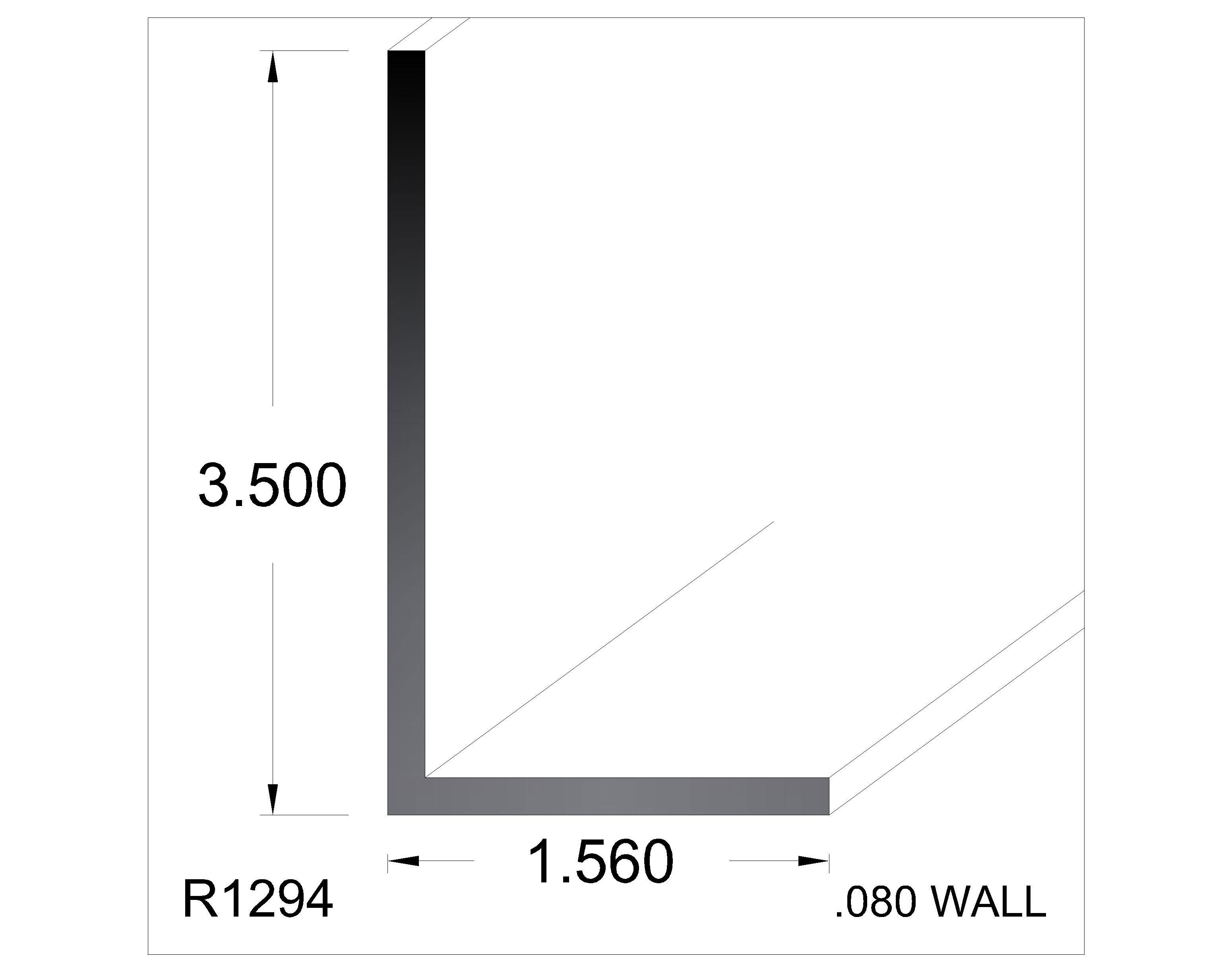

R1294
1 9/16"
3 1/2"
0.080
96.00"
0.245
10
R1812
2.0"
2.0"
0.100
96.00"
0.242
10
R1208
2.0"
2.0"
0.188
96.00"
0.471
10
For more information on Barbour Plastics L Shaped 90° Angle profiles,
Download our informational PDF.
